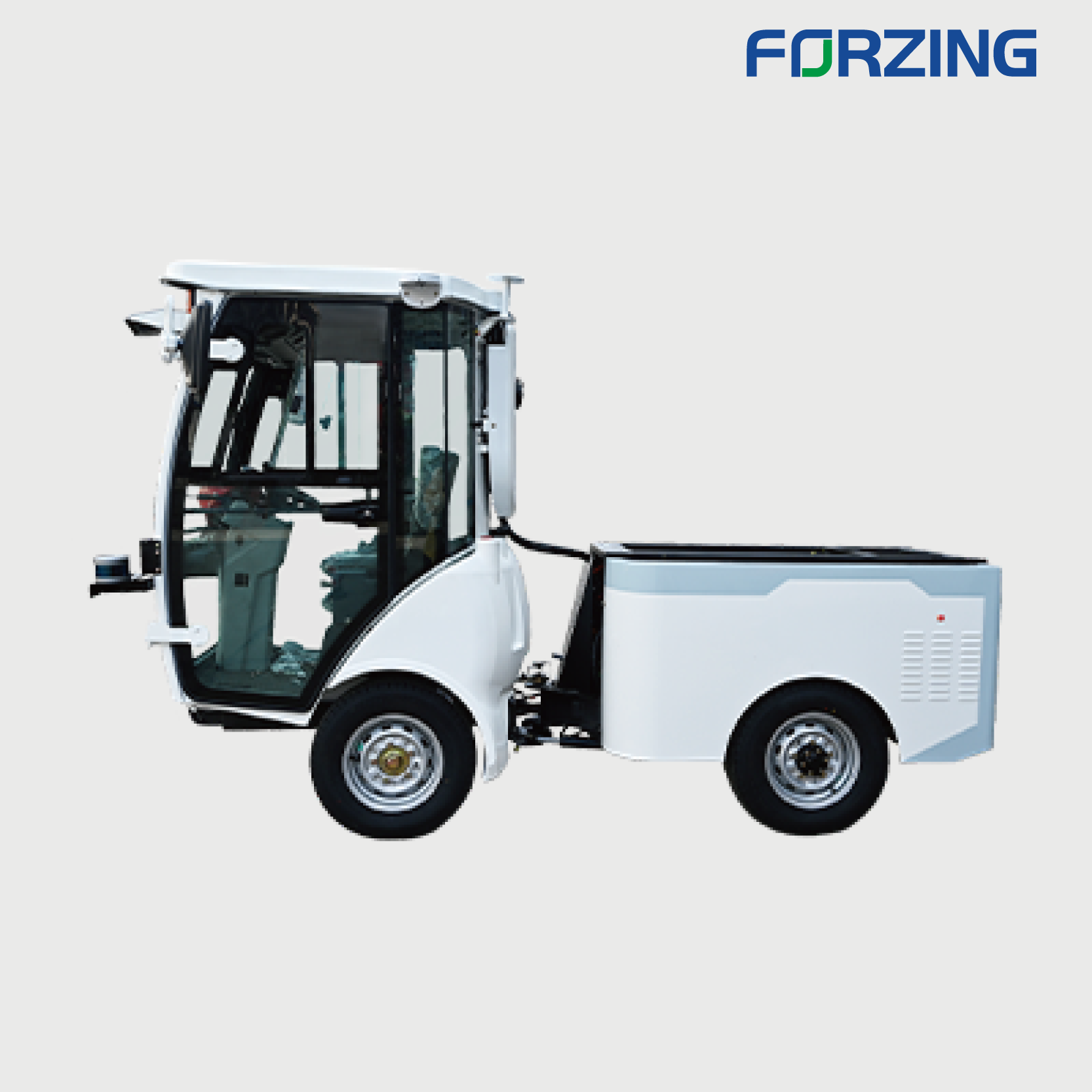

FD20X Drive-By-Wire Chassis

length(mm):3240
width(mm):1240
height(mm):2200
product details

Item

Specifications

Vehicle Type

Chassis for special purpose vehicle

Dimensions (L/W/H)

3240×1240×2200

Front-Rear Axle Distance

1580

Front-Rear Tire Width

Front wheels: 945; Rear wheels: 1024

Drive Type

Two axles, motor drive

Drive Mode

Two rear wheels driven

Maximum Total Vehicle Weight

2500Kg

Maximum Axle Load

Rear axle: 1500Kg

Motor Output Power

Rated power 7.5KW

Motor Peak Torque

Rated torque 28.6N.m; Peak torque ≥100 N.m

Motor Rated Speed

2500r/min

Battery and Capacity

Lithium iron phosphate, maximum capacity 31.5Kwh (can be expanded to 35Kwh)

Charging Type

Onboard charging

Charger

3.3Kw

Voltage

72v

Maximum Tire Load

Front wheels: 500Kg; Rear wheels 750Kg

Tire Type

175R13LT(8 Level of hierarchy

Braking System for Driving

Rear drum brake, hydraulic brake, linear control

Braking System for Parking

Electrical linear control cylinder

Accelerator Pedal

Linear control

Frame Type

Hinged front and rear frames

Drive Axle Type

Electric drive rear axle, main reduction ratio: 12.6

Maximum Speed (Typical)

25km/h

creep speed

0.5km/h

Cab Type

Non-permeable, front-mounted, single person, panoramic front windshield, double door, air conditioning and heating Hinged steering

Steering System

Articulated steering

Turning Radius

2.5m

Chassis ground clearance

Approach angle: 30°

Departure angle: 26°

Passing angle: 36°

Minimum ground clearance: 170mm

turning angle

45°

Maximum range

6~8 h

0-20 km/h Acceleration Time

5s

Driving Braking Distance

6m (speed 20km/h)

Driving Braking Gradient

20%

Parking Brake Gradient

20%

Operating Environment Temperature

-40°~60°

0-20 km/h Acceleration Time

-20°~50°
