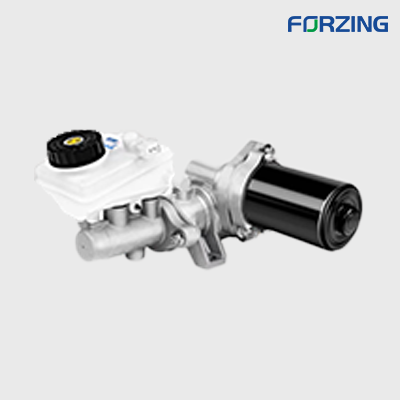

By-Wire Control Actuator

product details

Item

Specifications

Rated Voltage

DC12V(Motor)

Operating Voltage

DC9-16V(Controller)

Rated Power

270W(Motor)

Master Cylinder Diameter

20.64mm

Master Cylinder Pressure

8MPa

Pressure Accuracy

±0.2MPa

Response Delay

250ms

0 to Maximum Pressure

400ms

Adaptive Load

≤1500Kg

Operating Temperature

-40~100℃

Insulation Withstand Voltage

240V

Insulation Temperature

500℃

Waterproof Rating

IP55(Brake)

Operating Temperature

IP50(Controller)
